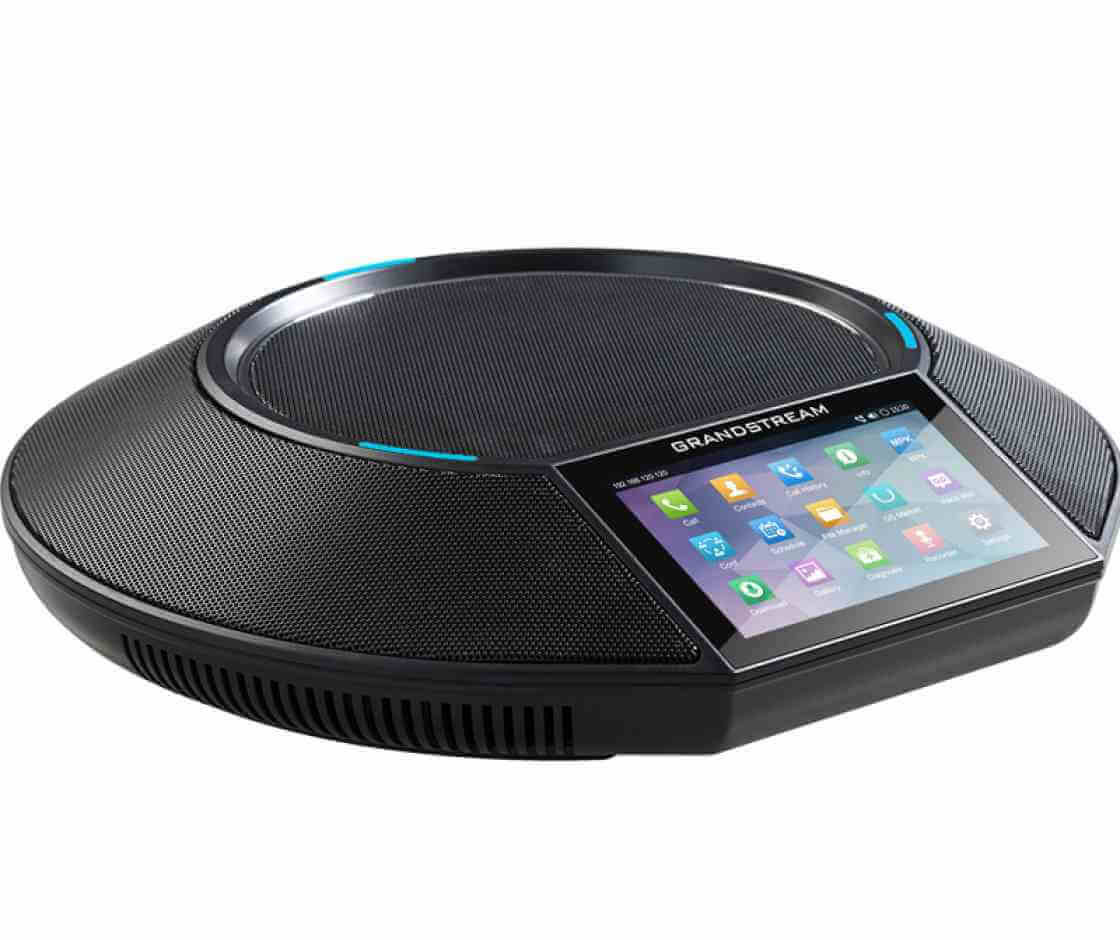

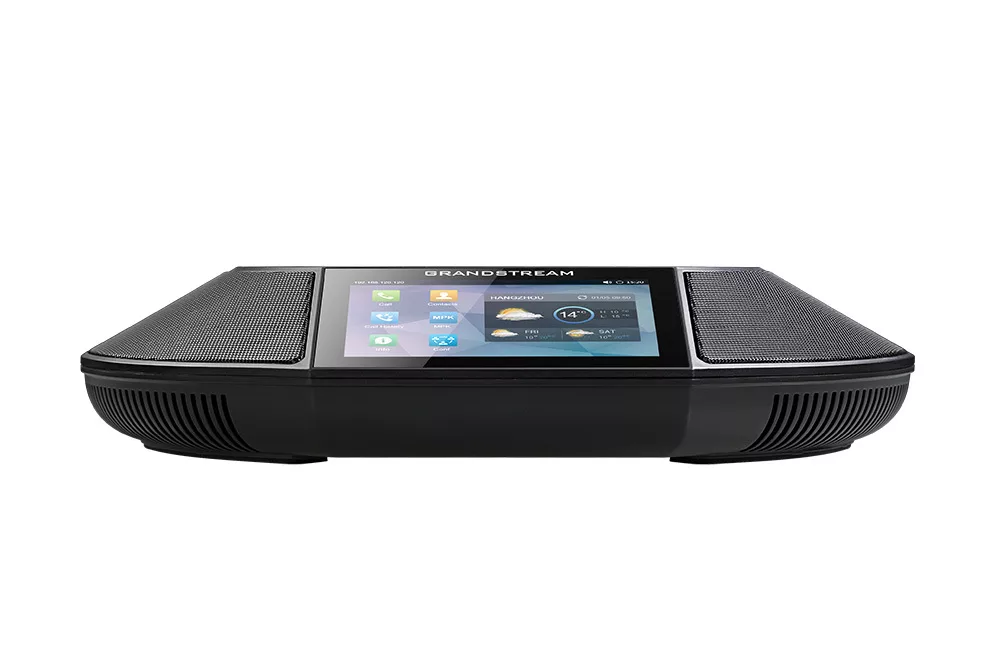

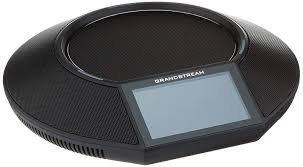

Android Enterprise Conference Phone

The GAC2500 is an Android-based Business Conference Phone that will redefine the choices, flexibility and mobility available in any workplace. It supports up to 6 lines and 6 SIP accounts while also offering access to the Google Play Store in order to hold conferences through Android applications. This Business Conference Phone offers a variety of mobility options by supporting Bluetooth for audio pairing and data syncing with mobile devices, as well as WiFi for wireless calling/conferencing in any location. A 7-way conference bridge allows the GAC2500 to easily create and hold a conference at any time and the 4.3” touch screen with familiar Android interface offers easy use. This Android Enterprise Conference Phone also offers daisy chain support. By combining all of these features, the GAC2500 offers a foundation that gives any business the choice and flexibility to customize their conference phone based on their communication needs.

Features

  • Android

    Android

    Runs Android 4.4 and offers access to the Google Play Store; Create custom Android apps

  • Gigabit

    Gigabit

    Auto-sensing 10/100/1000mbps network port

  • Bluetooth

    Bluetooth

    Built-in Bluetooth for syncing headsets and mobile devices

  • PoE

    PoE

    Built-in PoE+ to power the device and give it a network connection

  • WiFi

    WiFi

    WiFi support offers mobility

  • 6 Lines

    6 Lines

    Supports 6 SIP accounts and 7-way voice conferencing

  • HD Audio

    HD Audio

    HD audio to maximize audio quality

  • Touch Screen

    Touch Screen

    4.3 inch (800x480) capacitive touch screen

  • Secure

    Secure

    TLS and SRTP security encryption technology to protect calls and accounts

Technical Specification

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
Network Interface
Auto-sensing Gigabit Ethernet port with integrated PoE+ (IEEE 802.3at Class4)
Graphic Display
4.3” IPS LCD with 800x480 resolution
Mic
3 cardioid microphones; 12 ft. pickup distance, 360° capture
Speakerphone
Frequency: 220-18,000 Hz
Volume: Up to 86 dB at 0.5 meter
Audio full duplex
Bluetooth
Yes, integrated. Bluetooth 4.0
Wi-Fi
Yes, integrated. 802.11 b/g/n
Auxiliary Ports
3.5mm audio port, USB Micro-B, RJ48 daisy chain port
Voice Codecs
Support for G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (pending),
in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), G.729A/B, VAD, CNG, AEC, PLC, AJB, AGC
Telephony Features
6 SIP accounts, hold, transfer, forward, 7-way conference, call park, call pickup,
downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 2000 records)
Telephony Features
XML customization of screen, auto answer, click-to-dial, flexible dial
plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Sample Applications
Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google calendar, mobile
phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development
HD Audio
Yes, speakerphone with support for wideband audio
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication,
256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,
Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning
using TR-069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
Universal Power Supply:Input:100-240VAC 50-60Hz; Output:12VDC,2A (24W)
Physical
Unit dimension:280mm(W) x 285mm(L) x 60mm(H)
Unit weight:1.34kg; Package weight: 2.35kg
