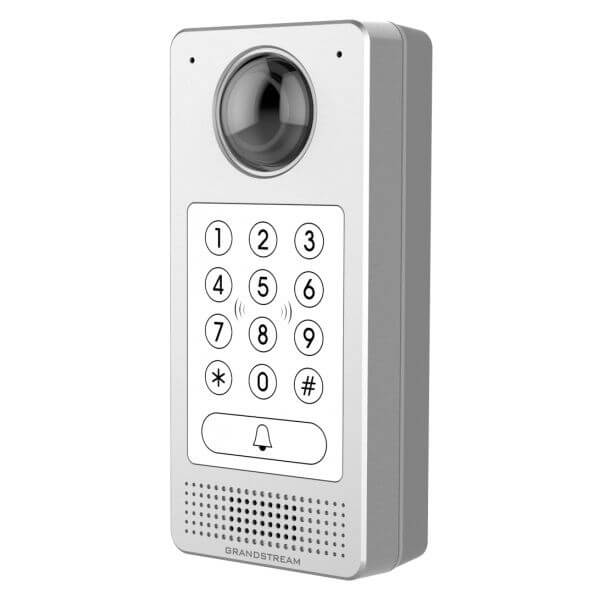

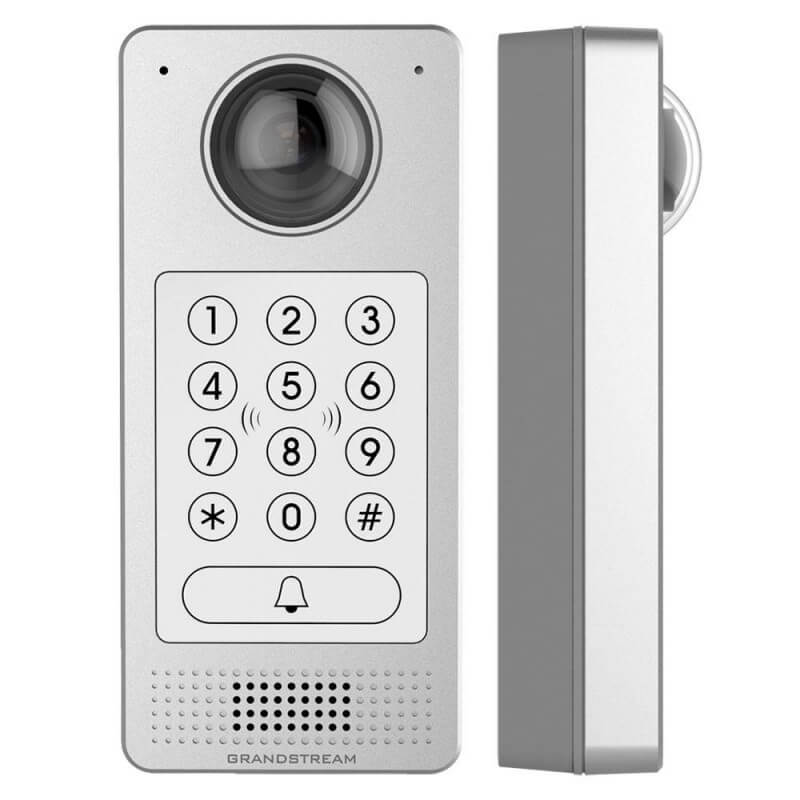

HD IP Video Door System

The GDS3710 is an IP Video Door System that also serves as a high-definition IP surveillance camera and IP intercom to offer facility access control and security monitoring for buildings of all sizes. This powerful IP Video Door System offers a 180-degree video viewing angle for wall-to-wall coverage, has a built-in RFID chip reader for secure keyless entry, includes a built-in microphone and speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices. The GDS3710 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance with HTTP API for 3rd party redevelopment. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and more. The combination of the GDS3710, Grandstream’s GXP21xx IP phones, GXV video phones, and GS-Wave mobile app provide a complete end-to-end solution for access control, video intercom, and security recording needs.

Features

  • Video Resolutions

    Video Resolutions

    Powerful video resolutions up to 1080p

  • RFID

    RFID

    Built-in RFID chip reader for keyless entry

  • Video Streaming

    Video Streaming

    SIP video streaming to video intercom stations, IP phones, or smart phones simultaneously

  • Weatherproof

    Weatherproof

    Built with a metal casing to make it weatherproof and vandal resistant

  • Wallto-wall coverage

    Wallto-wall coverage

    Built-in hemispheric camera allows for 180-degree wallto-wall coverage

  • Motion Detection

    Motion Detection

    Supports motion detection

  • Integrated PoE

    Integrated PoE

    Integrated PoE to power the device and provide a network connection

  • Microphone

    Microphone

    Built-in microphone and speaker offers voice options and intercom functionality

Technical Specification

Video Compression
H.264 High Profile / Main Profile / Base Profile, Motion JPEG
Image Sensor Resolution
1/2.7”, 2 Megapixel, 1920H x 1080V
Lens Type
1/2”, F2.5, FOV: 180°(W) x 150°(H)
Day & Night
White LEDs with smart brightness control
Max Video Resolution
1920x1080
Max Frame Rate
30 frames per second
Embedded Analytics
Motion detection (up to 4 privacy masks)
Snapshots
Triggered upon events, sent via email and/or FTP
Multi-Stream Resolution...
High-performance streaming server allowing multiple simultaneous access
Primary video stream: 1920 x 1080 resolution for continuous full HD recording
...Multi-Stream Resolution
Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
Third video stream: 320 x 240 resolution for smartphone applications
Network Protocol
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP/
RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
SIP/VoIP Support
Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
Voice Codecs
G.711µ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
Security
User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256-
bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q
Upgrade/ Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 (Pending) or AES encrypted XML configuration file
Audio Input
Built-in microphone, up to 1.5m with AEC
Audio Output
Built-in HD loudspeaker (2 watts), sound quality suitable for up to 3 m
Button
12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
RFID
125KHz: EM4100 (1 RFID card and 1 RFID key fob included)
Alarm Input
Yes, 2 Optocoupler, Vin < 15V, for door sensor or other low voltage devices
Alarm Output
Yes, 2 Relay, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage devices
Network Interface
10M/100M auto-sensing
Expansion Interface
RS485, Wiegand (26 bits) input and output
Dimensions and Weight
173mm(H) x 80mm(W) x 36mm(D)
0.6Kg
Power Supply
PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)
Ingress Protection
Weather proof, vandal resistant, with support for extra back reinforcing metal plate
