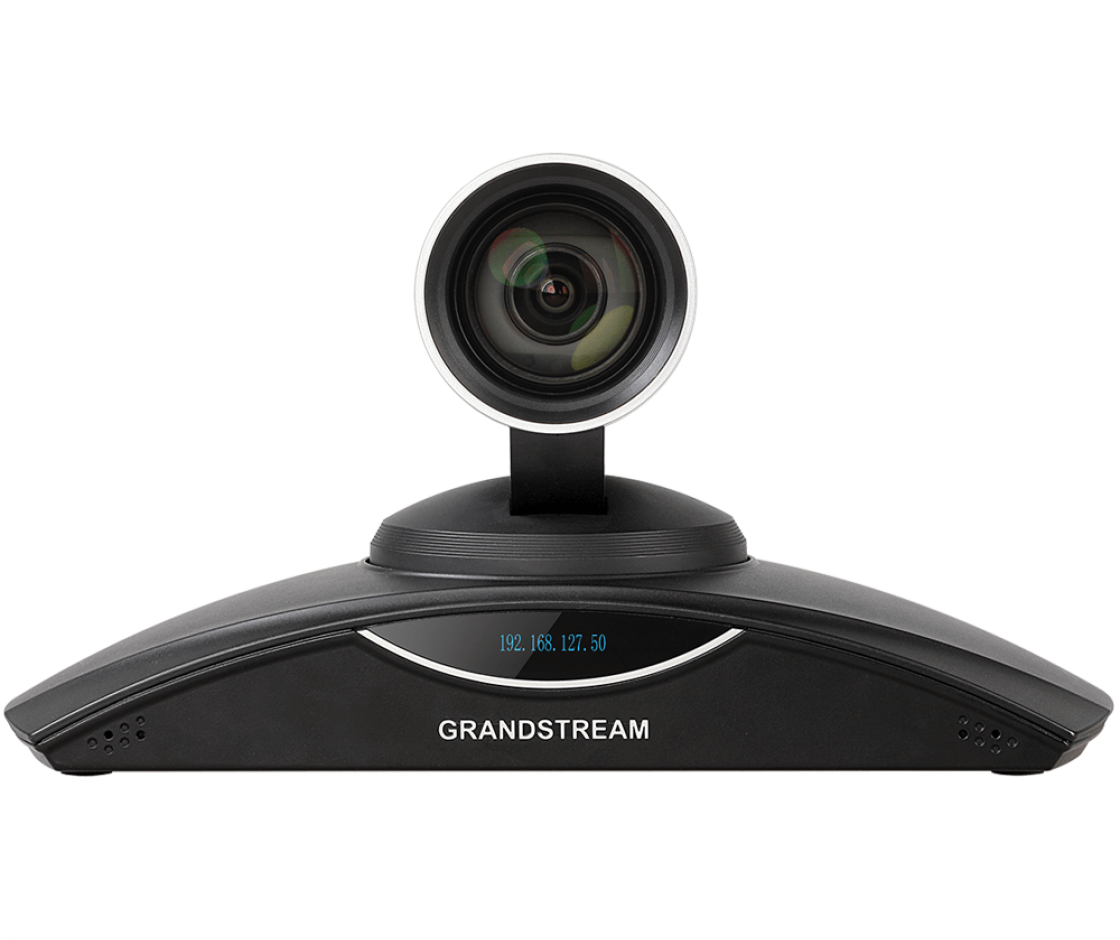

SIP/Android Video Conferencing Solution

The GVC3202 is a ground-breaking solution that offers businesses a revolutionary video conferencing system with unprecedented flexibility and the power of support for multiple popular video conferencing protocols and platforms right out of the box. The SIP-based GVC3202 supports Grandstream’s robust IPVideoTalk platform for plug and play video conferencing while also being interoperable with any 3rd party SIP video conferencing platform - thus offering a great option to expand or implement a 3rd party platform. In comparison to Grandstream’s GVC3200, the GVC3202 offers a slightly lower capacity option for businesses looking for up to 3-way video-conferencing and support for up to 2 Full HD monitors. The GVC3202 sports an innovative, patent-pending embedded MCU that supports up to 3-way conferencing with local mixing between SIP and other protocols.

Features

  • Bluetooth

    Bluetooth

    Built-in Bluetooth for use with Bluetooth speakers/ microphones, keyboards, data exchange, etc. keyless entry

  • HDMI

    HDMI

    Support for 2 screens thanks to 2 HDMI outputs

  • Gigabit

    Gigabit

    Experience the fastest possible connections speeds to maximize video quality

  • Full HD Video

    Full HD Video

    Experience video resolutions up to 1080p

  • Optical zoom

    Optical zoom

    A powerful 9x optical zoom offers robust video clarity

  • Presentation

    Presentation

    Share a presentation with conference attendees or review a document.

  • Embedded MCU

    Embedded MCU

    Embedded MCU to allow up to 3 video attendees

  • Local & far-end controllable PTZ

    Local & far-end controllable PTZ

    Local & far-end controllable PTZ camera with wideangle lens

  • Video Record

    Video Record

    Easily record all video conferences to document meetings

Technical Specification

Protocols/Standards
SIP RFC3261, BFCP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,
SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, FEC, FECC
Camera
1/3” 2 Megapixel CMOS 1920Hx1080V@30fps
Lens
9x optical zoom, +/-23° tilt, +/- 90° pan, 70°(W)*- 6.3° (T) field of view
Network Interface
1× RJ45 10/ 100/ 1000 Mbps port
Bluetooth
Yes, integrated. Bluetooth 4.0 + EDR
Video Outputs
2x HDMI up to 1080p with CEC
Video Input
1x VGA/1x HDMI with resolution up to 1080p
Microphone/Speaker
External MIC/Speaker, built-in MIC, cascadable external MIC/speaker (pending)
Remote Control
Bluetooth remote control with multi-touch touchpad
Auxiliary Ports
1x USB 2.0, SD, external speaker port, reset pin
Graphic Display
OLED with 128x32 resolution
Voice Codecs
G.711μ/a, G.722 (wide-band), iLBC (pending), Opus, G.722.1, G.722.1c (pending), in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO)
Video Codecs
H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps
People Video Resolution
1080p from 512 Kbps, 720p from 384 Kbps, 4SIF/4CIF from 128 Kbps, SIF/CIF/QSIF/QCIF/SQSIF/SQCIF
from 64 Kbps
Content Video Resolution
Input: VGA, SVGA, XGA, WXGA, WXGA, SXGA, 1440×900, 720p, 1600×1200, 1080p (HDMI), up to 60fps;
Encoding: 1280×720, 1920×1080
Output Resolution
720p, 1080p
Embedded MCU
Up to 2-way 1080p conference, 3-way 720p conference, 3-way VGA conference
Dual-Stream
BFCP, people video (up to 1080p@30fps) + content video (up to 1080p@15fps, 720p@30fps)
Audio Features
AEC, ANS, AGC, PLC, CNG/VAD
Video Features
FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption (pending)
Platform Bridging
Bridge SIP calls with Android VoIP apps
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 3-way audio/video conference, downloadable XML phone book, LDAP, call waiting, call history, flexible dial plan, personalized music ring tones, server redundancy & fail-over
Sample Applications
Web browser, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via
Bluetooth, etc. API/SDK available for advanced custom application development
Application Deployment
Allows Android 4.4.2 compliant applications to be deployed in the device with provisioning control
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES
encrypted configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
Multi-Language
English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or
AES encrypted XML configuration file
Power
Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC/5A (60W)
Dimensions and Weight
Net weight: 5.75 Kgs; Gross weight per box: 7.86 Kgs; Unit Dimensions (L x W x H): 11.9’’ x 4.89’’ x 7.26
