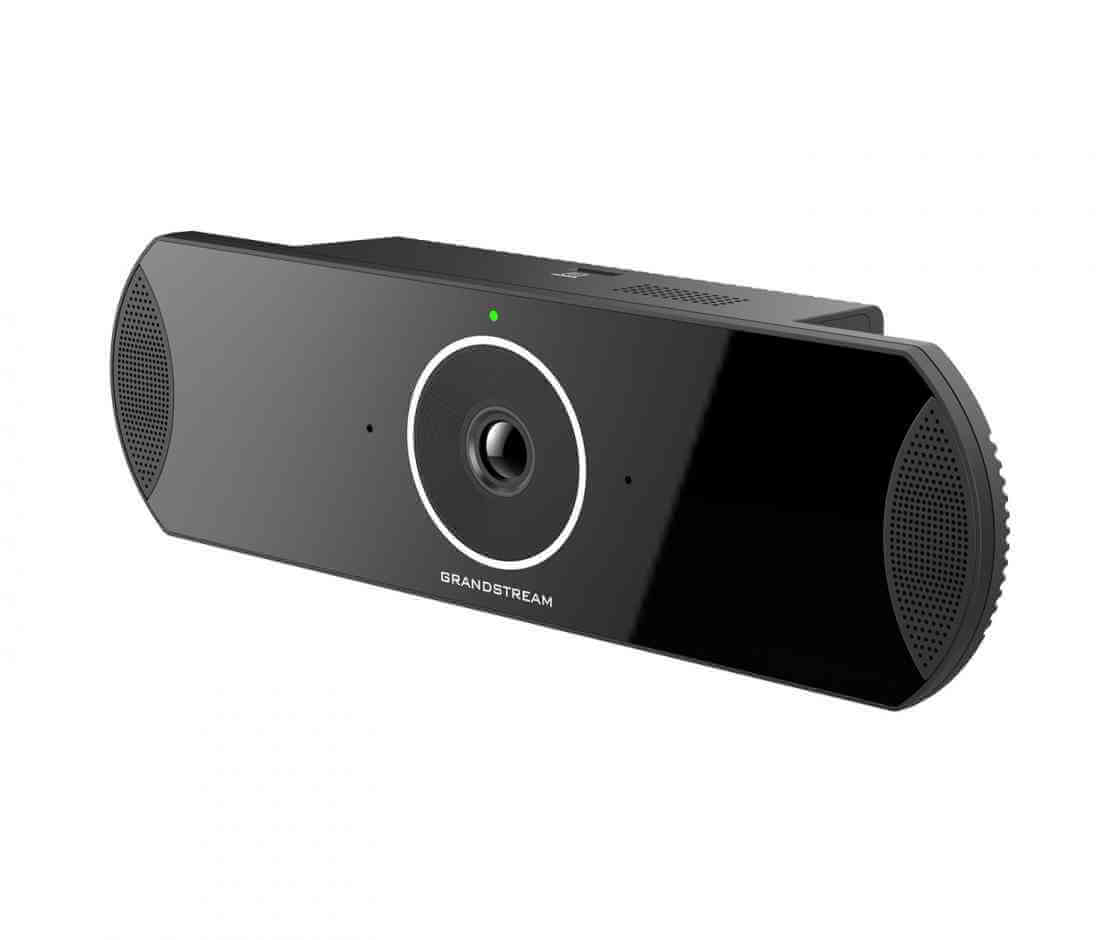

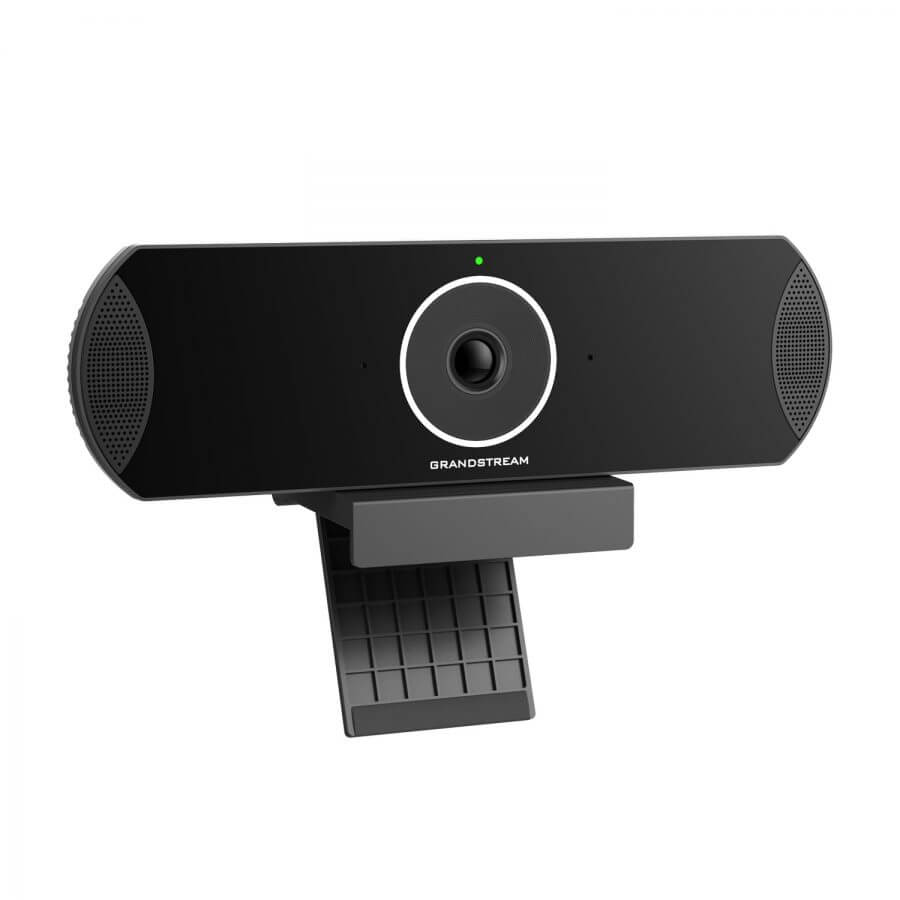

Video Conferencing Endpoint

The GVC3210 is an innovative video conferencing endpoint ideal for small to medium businesses who seek an easy-to-use yet potent video conferencing solution. By supporting top-tier video resolutions up to 4K Ultra HD, the GVC3210 turns any video conference into a powerful, clear, enhancing experience. Designed to allow users to customize their solution according to their specific communication needs, the GVC3210 can be paired with most video and web conferencing services to create a multi-point conferencing system. This video conferencing endpoint runs on the AndroidTM operating system. This allows users to utilize any Android conferencing or communication application. The GVC3210 comes equipped with sophisticated Noise-Shield technology to block out background noise and maximize audio quality. Additional features include advanced 4-microphone array with beam-forming capability, a high-end 16M pixel CMOS sensor with ePTZ for easy camera view adjustments and Miracast wireless for convenient content sharing. This simple yet powerful video conferencing endpoint is the ideal choice for SMBs looking for a price-friendly option that still carries the high-end features needed to sustain high-quality business communications.

Features

  • Full HD Video

    Full HD Video

    Experience sharp video quality of up to 4K resolution*

  • Android

    Android

    Runs on Android 6.x operating system

  • Bluetooth

    Bluetooth

    Built-in Bluetooth for use with Bluetooth speakers/ microphones, keyboards, data exchange, etc.

  • WiFi

    WiFi

    Integrated dual band WiFi to pair with video and web conferencing service

  • Noise-Shield Technology

    Noise-Shield Technology

    Built-in 4-MIC array with beam-forming, support for external audio equipment and innovative Noise Shield technology

  • Advanced Camera

    Advanced Camera

    Advanced camera with 16M pixel CMOS sensor, 90 FOV wideangle lens and ePTZ for easy camera view adjustments

  • Miracast wireless content

    Miracast wireless content

    Support for Miracast wireless content sharing to share a presentation with conference attendees

  • HDMI & USB

    HDMI & USB

    Integrated 1x HDMI in, 2x HDMI out, and 2x USB

Technical Specification

Protocols / Standards
SIP RFC3261, BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069 (pending), 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, H.323
Camera
1/2.3“, 16 Megapixel CMOS, 4K (2160p) Output
Lens
90°field of view, ePTZ (3x digital zoom)
Network Interface
1× RJ4510/ 100/ 1000 Mbps
WiFi
Integrated dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Bluetooth
Integrated Bluetooth 4.0 + EDR
Video Outputs
2x HDMI 1.4 up to 4K (2160p) with CEC
Video Input
1x HDMI 1.4 with resolution up to 1080p
MIC/Speaker
Built-in 4x MIC array

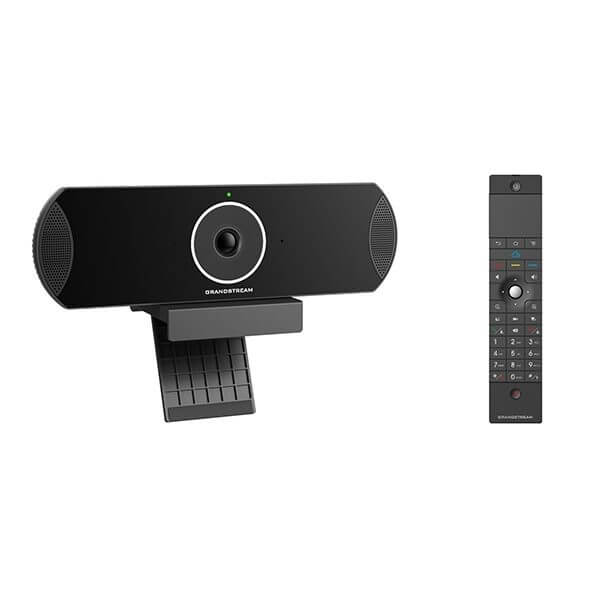

Remote Control
Bluetooth and infrared remote control with multi-touch touchpad
Auxiliary Ports
2x USB 2.0, micro-SD, Reset
Voice Codecs
Support for G.711μ/a, G.722 (wide-band), iLBC, Opus , G.722.1, G.722.1c ,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Video Codecs
s H.264 BP/MP/HP, video resolution up to 4K (2160p), frame rate up to 30 fps, bitrate up to 16Mbps
Video Resolutions
4K (2160p@30fps) from 4096Kbps, 1080p@30fps from 1024Kbps, 720p@30fps from 512 Kbps, 4SIF/4CIF from
128 Kbps, SIF/CIF from 64 Kbps
4K Capability
Experience sharp video quality of up to 4K resolution*
1. When the GVC3210 is using 4K resolution during video call, EPTZ is not supported. The GVC3210 supports
90° field of view.
4K Capability
2. When the GVC3210 is using 4K resolution, local recording is not supported.
3. When the GVC3210 is using 4K resolution, HDMI Out Port 2 is not supported. Users can only use HDMI Out Port 1 for one display.
Content Resolutions (screen sharing)
Input: VGA, SVGA, XGA, 1280×600, WXGA, WXGA, SXGA, 1440×900, XGA+, 720p, 1600×1200, 1080p (HDMI), up
to 60fps
Encoding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 720p, 1080p
Dual-Stream
BFCP, video resolution (up to 4K 2160p@30fps) + content resolution (up to 1080p@15fps)
Audio Features
AEC, ANS, AGC, Noise Shield, PLC, CNG/VAD
Video Features
FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption
Telephony Features
Hold, forward (unconditional/no-answer/busy), downloadable phone book (XML, LDAP), call waiting, call history, flexible dial plan, personalized music ringtones, server redundancy & fail-over
Sample Applications
Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google calendar,
mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development
Applications Deployment
Allow various Android operation system 6.0 compliant applications to be developed, downloaded and run in the embedded device with provisioning control
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted
configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
Multi-Language
English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES
encrypted XML configuration file
Power
Input: 100~240Vac 50/60hz; output: 12V/2A 24W
Dimensions and Weight
80mm (H) x 46.5mm (W) x 270mm (L)
