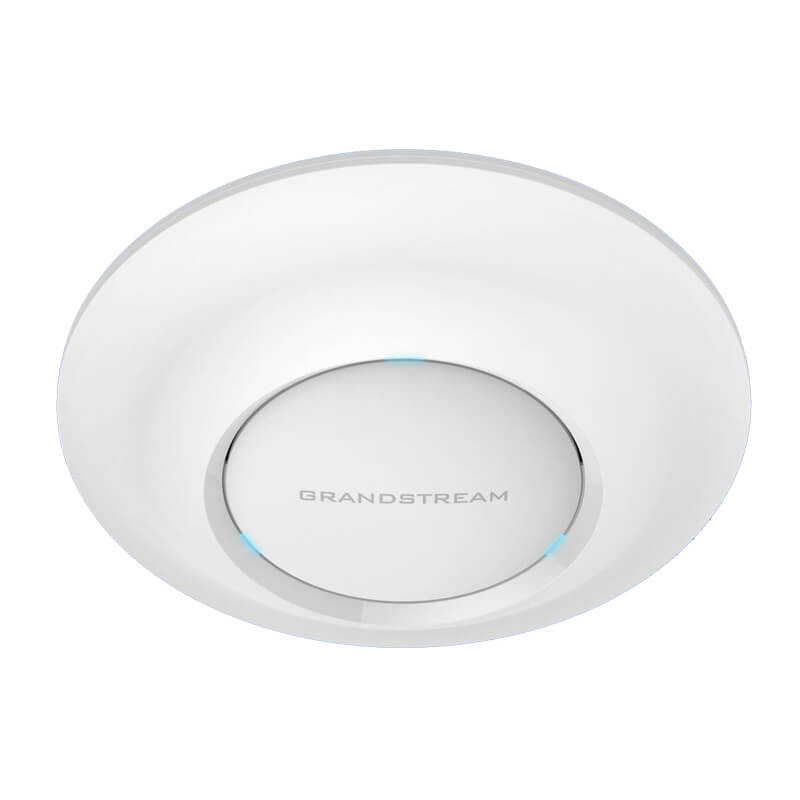

Mid-Tier 802.11ac Wave-2 WiFi Access Point

The GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 30 GWN76xx series APs independently without needing separate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 450+ concurrent client devices per AP and dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point for medium wireless network deployments with medium-to-high user density.


  • Gigabit


    1.27Gbps wireless throughput and 2x Gigabit wireline ports

  • MIMO technology

    MIMO technology

    Dual-band 2x2:2 MU-MIMO with beamforming technology

  • PoE


    Support 802.3af Powerover-Ethernet (PoE)

  • WiFi client devices

    WiFi client devices

    Support 450+ concurrent WiFi client devices

  • Coverage range

    Coverage range

    Up to 165-meter coverage range

  • Advanced QoS

    Advanced QoS

    Advanced QoS to ensure real-time performance of low-latency applications

  • Secure


    Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device

  • Embedded controller

    Embedded controller

    Embedded controller allows GWN7600 to auto-discover, auto-provision and manage up to 30 GWN7600s in a network

Technical Specification

WiFi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)
2x 2.4 GHz, gain 3 dBi, internal antenna
2x 5 GHz, gain 3 dBi, internal antenna
WiFi Data Rates
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4GHz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
2.4GHz radio : 2.400 - 2.4835 GHz
5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz (FCC, IC, RCM)
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
WiFi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device
2x2:2 2.4GHz (MIMO), 2x2:2 5GHz (MU-MIMO)
Coverage Range
Up to 541 ft. (165 meters)
Maximum TX Power
5G: 22dBm (FCC) / 20dBm (CE)
2.4G: 22dBm (FCC) / 17dBm (CE)
Receiver Sensitivity-2.4G
802.11b:-99dBm @1Mbps,-91dBm @11Mbps;802.11g:-93dBm @6Mbps,-75dBm @54Mbps;
80.11n 20MHz:-72dBm @MCS7;802.11n 40MHz:-69dBm @MCS7
Receiver Sensitivity-5.0G
802.11a:-91dBm @6Mbps,-74dBm @54Mbps;802.11ac 20MHz:-67dBm @MCS8;802.11ac
HT40:-63dBm @MCS9;802.11ac 80MHz:-60dBm @MCS9
16 SSIDs per access point
Concurrent Clients

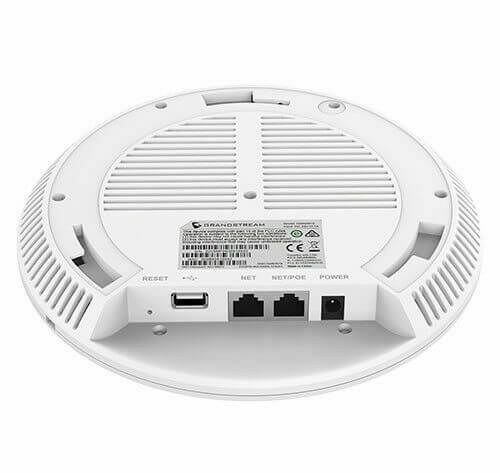

Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock
Indoor wall mount or ceiling mount, kits included
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller in GWN7600 allows it to auto-discover, auto-provision and manage up to 30
GWN7600s in a network
Power and Green Energy Efficiency
DC Input: 24VDC/1A
Power over Ethernet (802.3af) compliant
Maximum Power Consumption:13.8W
Operation: 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Unit Dimension: 180.4mm x 180.4mm x 40.8mm
Unit+Mounting Kits Dimension: 180.4mm x 180.4mm x 48.8mm
Entire Package Dimension: 228.5 x 220 x 79mm; Entire Package Weight: 854g
Package Content
GWN7600 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
