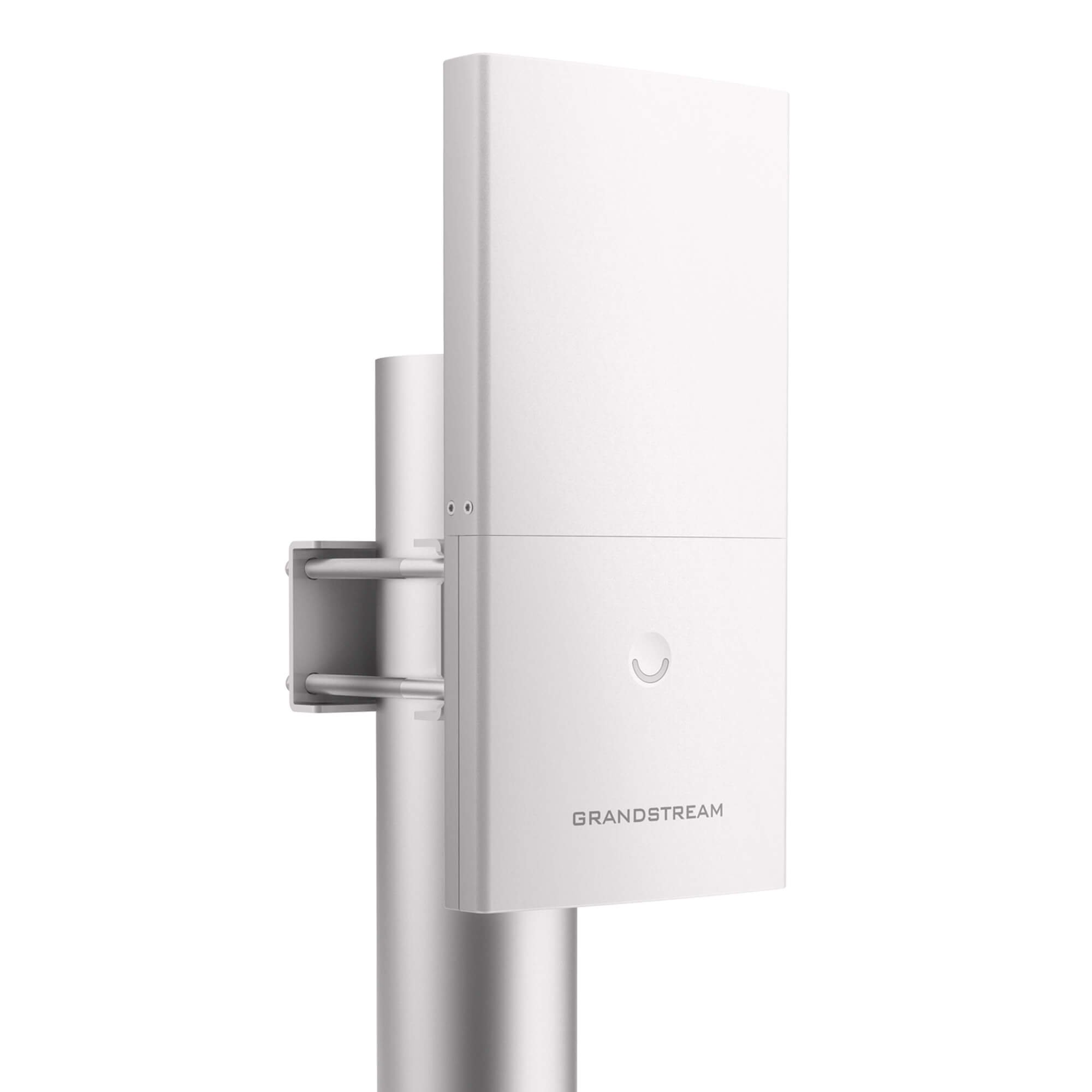

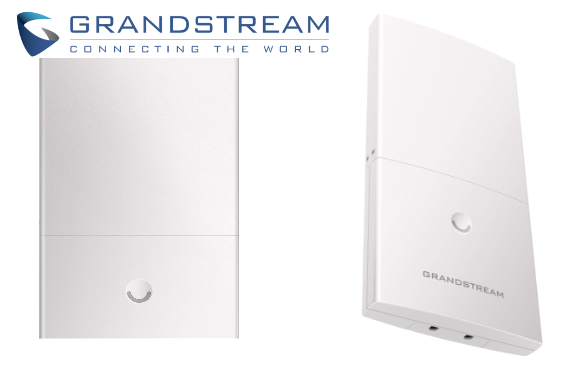

Outdoor Long Range 802.11ac Wave-2 WiFi Access Point

This long range WiFi access point is designed to provide extended coverage support and is ideal for outdoor WiFi solutions thanks to its waterproof casing and heat resistant technology. The GWN7600LR comes equipped with dualband 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and extended WiFi coverage range of up to 300 meters. To ensure easy installation and management, the GWN7600LR uses a controller-less distributed network management design and an embedded controller within the product’s web user interface. This allows each access point to manage a network of up to 30 GWN APs independently without needing separate controller hardware/software and without a single point-of-failure. Its easy installation and management features packed with extra coverage support and advanced performance features, make the GWN7600LR an ideal outdoor access point for mid-size wireless network deployments

Features

  • Gigabit

    Gigabit

    1.27Gbps wireless throughput and 2x Gigabit wireline ports

  • MIMO technology

    MIMO technology

    Dual-band 2x2:2 MU-MIMO with beamforming technology

  • PoE

    PoE

    Support 802.3af and 802.3at Power-overEthernet (PoE/PoE+)

  • WiFi client devices

    WiFi client devices

    Support 450+ concurrent WiFi client devices

  • Coverage range

    Coverage range

    Up to 300-meter coverage range

  • Advanced QoS

    Advanced QoS

    Advanced QoS to ensure real-time performance of low-latency applications

  • Secure

    Secure

    Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device

  • Embedded controller

    Embedded controller

    Embedded controller allows GWN7600LR to auto-discover, autoprovision and manage up to 30 GWN series WiFi APs in a network

Technical Specification

WiFi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
2x2.4 GHz, gain 4 dBi, internal antenna
2x5 GHz, gain 5 dBi, internal antenna
WiFi Data Rates
I EEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps; 400 Mbps with 256-QAM on 2.4GHz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
2.4GHz radio : 2.400 - 2.4835 GHz
5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
WiFi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device
MIMO
2x2:2 2.4GHz (MIMO), 2x2:2 5GHz (MU-MIMO)
Coverage Range
Up to 984 ft. (300 meters)
Maximum TX Power
2.4G: 26dBm (FCC) / 16dBm (CE)
5G: 26dBm (FCC) /18dBm (CE)
Receiver Sensitivity-2.4G
802.11b:-100dBm @1Mbps,-93dBm@11Mbps;802.11g:-95dBm @6Mbps,-76dBm@54Mbps;
802.11n 20MHz:-72dBm @MCS7;802.11n 40MHz:-70dBm @MCS7
Receiver Sensitivity-5.0G
802.11a:-93dBm @6Mbps,-76dBm @54Mbps;802.11ac 20MHz:-68dBm @MCS8;802.11acHT40:-
65dBm @MCS9;802.11ac 80MHz:-60dBm @MCS9
SSIDs
16 SSIDs per radio
Concurrent Clients
450+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole
Mounting
Outdoor base bracket and cover bracket included
LEDs
1 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller in GWN7600LR allows it to auto-discover, auto-provision and manage up to
30 GWN series WiFi APs in a network
Power and Green Energy Efficiency
Power over Ethernet 802.3af and 802.3at compliant
Maximum Power Consumption: 12.9 W (PoE supply); 23.0 W (PoE+ supply)
Environmental
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% Non-condensing
Physical
Unit Dimension: 290×150×35mm; Unit Weight: 708g
Unit + Mounting Kits Dimension : 290×150×56mm; Unit + Mounting Kits Weight: 1528.2g
Entire Package Dimension: 423×187×97mm; Entire Package Weight: 1844g
Package Content
Outdoor Long Range 802.11ac Wave-2 WiFi AP, Mounting Kits, Quick Start Guide
Waterproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
