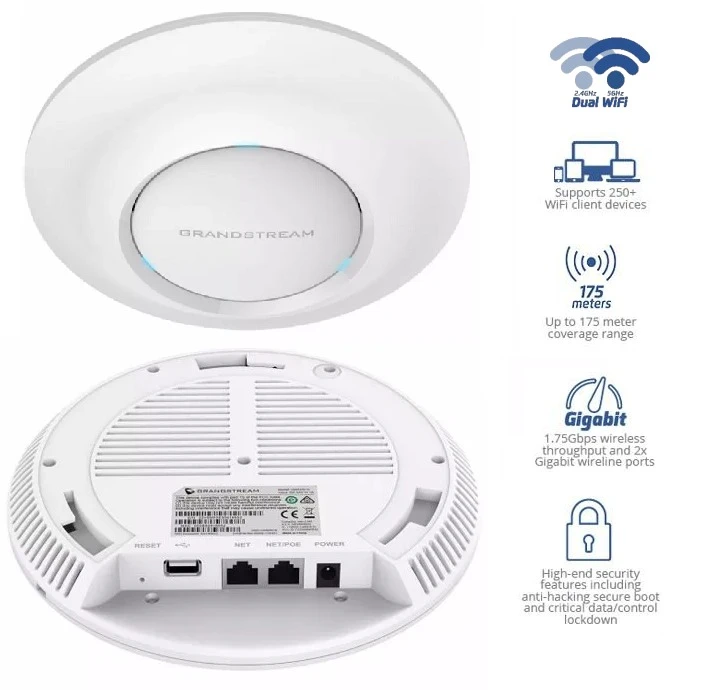

Enterprise 802.11ac WiFi Access Point

The GWN7610 is a high-performance 802.11ac wireless access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7610 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing seperate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 250+ client devices per AP and dual Gigabit network ports with PoE/PoE+, the GWN7610 is an ideal wireless access point for large and small wireless network deployments.

Features

  • Gigabit

    Gigabit

    1.75Gbps wireless throughput and 2x Gigabit wireline ports

  • MIMO technology

    MIMO technology

    Dual-band 3x3:3 MIMO technology

  • PoE

    PoE

    Self power adaptation upon auto detection of PoE or PoE+

  • WiFi client devices

    WiFi client devices

    Support more than 250+ WiFi client devices

  • Coverage range

    Coverage range

    Up to 175-meter coverage range

  • Advanced QoS

    Advanced QoS

    Advanced QoS to ensure real-time performance of low-latency applications

  • Secure

    Secure

    Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device

  • Embedded controller

    Embedded controller

    Embedded controller allows GWN7610 to auto-discover, auto-provision and manage up to 50 GWN7610s in a network

Technical Specification

WiFi Standards
IEEE 802.11 a/b/g/n/ac
Antennas
3x 2.4 GHz, gain 3 dBi, internal antenna
3x 5 GHz, gain 3 dBi, internal antenna
WiFi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5 Mbps to 450 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
2.4GHz radio : 2.400 - 2.4835 GHz
5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz (FCC, IC, RCM)
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
WiFi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device
MIMO
3x3:3 2.4GHz, 3x3:3 5GHz
Coverage Range
Up to 575 ft. (175 meters)
Maximum TX Power
5G: 26dBm (FCC) / 20dBm (CE)
2.4G: 26dBm (FCC) / 17dBm (CE)
Reciever Sensitivity-2.4G
802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz:
-73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
Reciever Sensitivity-5G
802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz:
-69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:-61dBm@MCS9
SSIDs
16 SSIDs per access point
Concurrent Clients
250+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller in GWN7610 allows it to auto-discover, auto-provision and manage up to 50
GWN7610s in a network
Auto Power Saving
Self power adaptation upon auto detection of PoE or PoE+
Power
DC Input: 24VDC/1A
Power over Ethernet 802.3af/802.3at compliant
Maximum Power Consumption:13.8W
Environmental
Operation: 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600g
Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g
Package Content
GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
