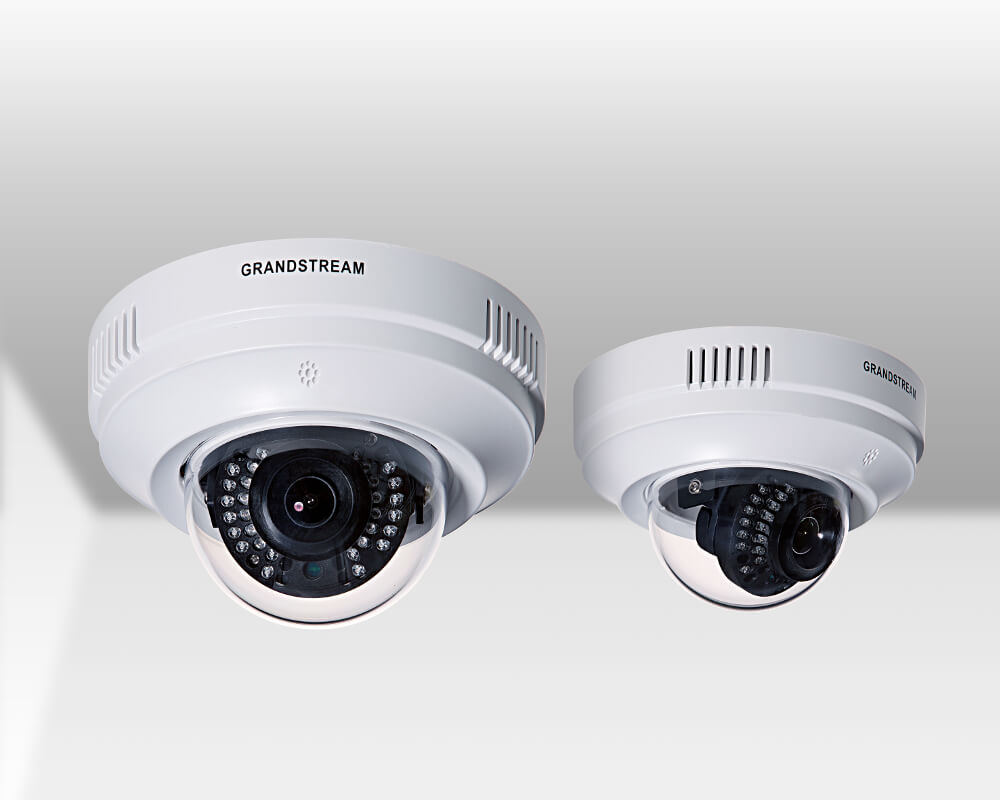

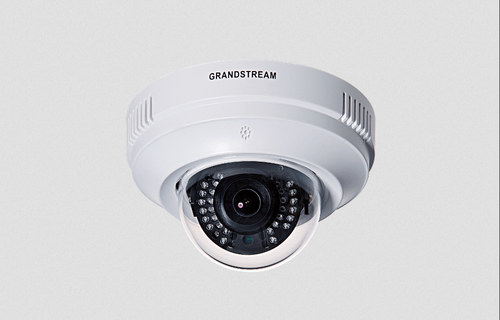

An Indoor, Infrared IP Camera

The GXV3611IR_HD is an indoor Infrared (IR) fixed dome IP camera with a high-definition 2.8mm lens – making it ideal for wide angle monitoring of nearby subjects in environments such as banks, hotels, retail, offices or building entrances. Pair the GXV3611IR_HD with Grandstream’s GVR3550 Network Video Recorder (NVR), which supports plug-n-play with all Grandstream IP cameras, to create a powerful recording and monitoring solution. The GXV3611IR_HD can also be managed by GSURF Pro (Grandstream’s FREE Video Management Software that allows simultaneous control of up to 72 cameras) along with other ONVIFcompliant video management systems. The GXV3611IR_HD IP camera features industry-leading SIP/VoIP for 2-way audio and video streaming to both video and smart phones. It contains integrated PoE, IR-CUT for day and night mode, microphone, speaker, SD card slot and a flexible HTTP API for easy integration with other surveillance systems.

Features

  • HD Video

    HD Video

    Megapixel CMOS sensor for 720p HD video resolution

  • Smart IR

    Smart IR

    Smart infrared technology for optimal white balance and exposure

  • PoE

    PoE

    Includes builtin Power over Ethernet (PoE)

  • SD

    SD

    Integrated micro SDHC interface for local embedded storage

  • Motion Detection

    Motion Detection

    Supports Motion Detection with up to 16 target areas

  • Alert Notifications

    Alert Notifications

    Supports alert notifications via outbound voice or video call and email screenshot

  • Streaming

    Streaming

    SIP/VoIP support for 2-way audio and video streaming to audio, video and mobile phones

Technical Specification

Video Compression
H.264, MJPEG
Image Sensor Resolution
Megapixel Progressive Scan CMOS, 1280H x 720V
Image Sensor Sensitivity
Day/Night Mode (exceptional low noise level, low light sensitivity)
Shutter: 1/10000 – 1/30 second
Focal Length
2.8mm
Aperature
F1.8
IR Cut Filter
Yes, Mechanical
Day & Night Mode
IR LED with Smart IR software control
Minimum Illumination
0 lux
Pan
176°
Tilt
60°
Responsitivity
3300mV / (lux-sec)
Supported Maximum Video Resolution
1280x720
Video Bit Rate
32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording
Audio Input
Built-in Microphone and 3.5mm line in
Audio Output
Built-in speaker and 3.5mm line out
Audio Compression
G.711u/a
Embedded Analytics
Motion Detection (up to 16 target areas)
Pre-/Post Alarm Buffer
Yes
Snapshots
Triggered upon events, Send via email/FTP
Network Protocol
TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
Privacy Mask Support
Yes, 4 zones
Power Adapter
Output: 12VDC/0.5A; InputL 100 ~ 240 VAC, 50 ~ 60 Hz
Cable Connections
External: RJ45 ethernet, 3.5mm line-in, 3.5mm line-out, power input
Internal: PINS for alarm-in and alarm-out
Casing
Plastic case for indoor use only
