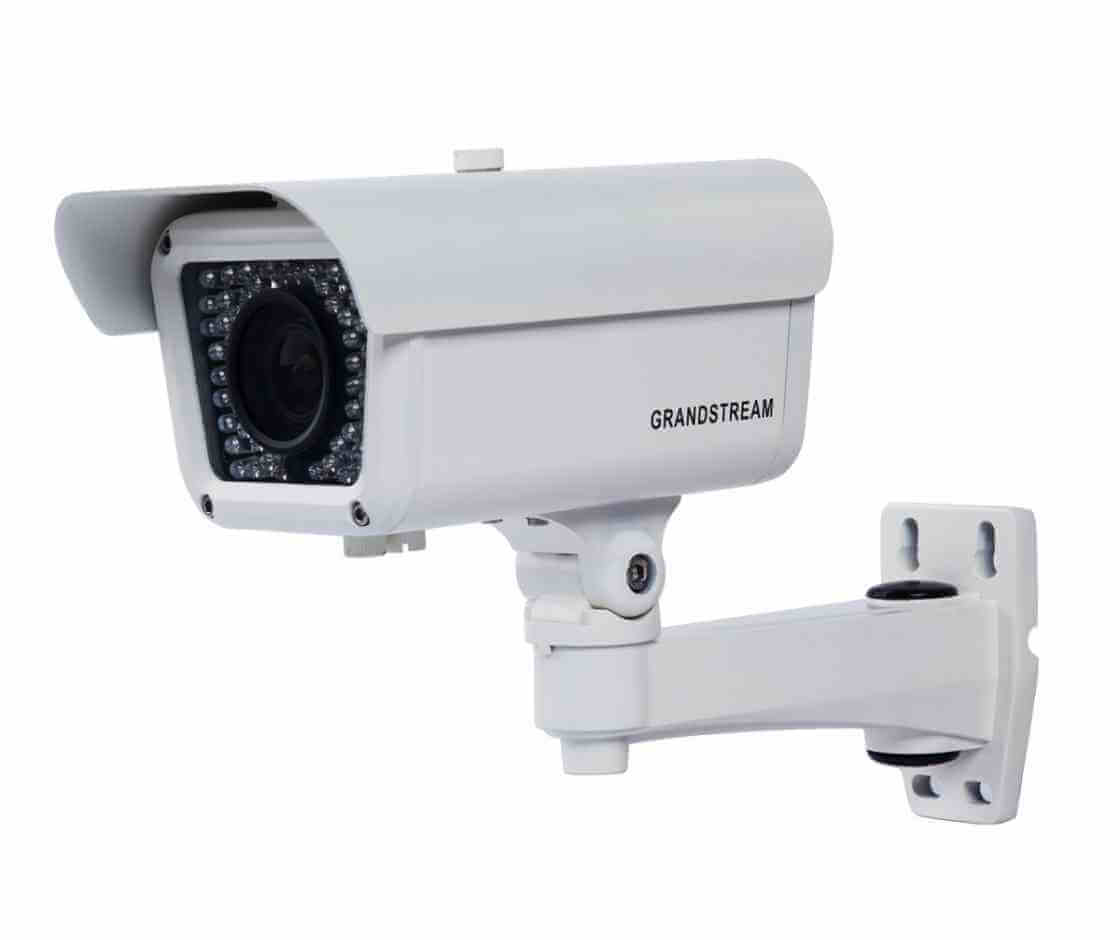

Vari-Focal, Infrared, Weatherproof IP Cameras

The GXV3674 v2 series are powerful weatherproof Infrared (IR) IP cameras offering an adjustable vari-focal HighDefinition lens – making them ideal for any outdoor/indoor setting where weather and light conditions constantly change. The GXV3674 v2 series can be managed with GSURF Pro (Grandstream’s FREE Video Management Software that allows simultaneous control of up to 72 cameras) along with other ONVIF-complaint video management systems.

Features

  • Weatherproof

    Weatherproof

    IPP66 compliant weatherproof metal casing

  • Smart IR

    Smart IR

    Smart IR to maximize white balance/exposure (IR LEDs can be turned off)

  • PoE

    PoE

    Includes builtin Power over Ethernet (PoE)

  • Full HD Video

    Full HD Video

    1.2 megapixel and 720p (GXV3764_VF_HD) 3.1 megapixel, 1080p (GXV3674_VF_FHD)

  • Lens

    Lens

    Features a variable focal lens that can be adjusted from 2.8-12mm

  • Motion Detection

    Motion Detection

    Supports Motion Detection with up to 16 motion detection target areas

  • Alert notifications

    Alert notifications

    Supports alert notifications via outbound voice or video call and email screenshot

  • Video streaming

    Video streaming

    SIP/VoIP support for 2-way audio and video streaming to audio, video and mobile phones

Technical Specification

Video Compression
H.264, MJPEG
Image Sensor Resolution
GXV3674_HD_VF: 1/3” 1.2 Megapixel Progressive Scan CMOS, 1280H x 960V
GXV3674_FHD_VF: 1/3”, 3.1 Megapixel Progressive Scan CMOS, 2048H x 1536V
Image Sensor Sensitivity
Day/Night mode (exceptional low noise level, low light sensitivity)
Shutter: 1/10000 - 1/30 second
Focal Length
2.8 - 12 mm
Aperature
F1.4, DC-IRIS
Field Angle (FOV)
90° - 28°(Horizontal Field)
IR Cut Filter
Yes, Mechanical
Day & Night Mode
IR LED covering up to 25 meters, with Smart IR software control
Minimum Illumination
0.05 Lux, 0 Lux with IR
Responsitivity
GXV3674_HD_VF: 5.48V/lux-sec (550nm) GXV3674_FHD_VF: 1.9V/lux-sec (550nm)
Pixel Dynamic Range
GXV3674_HD_VF: Wide Dynamic Range of 120dB with SNRMAX 44dB
GXV3674_FHD_VF: Wide Dynamic Range of 100dB with SNRMAX 39dB
Supported Maximum Video Resolution and Frame Rate
GXV3674_HD_VF: 1280x960 (25fps); 1280x720 (30fps)
GXV3674_FHD_VF: 2048x1536 (15fps); 1920x1080 (30fps)
Video Bit Rate
32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording
Audio Input
Line-in, 1500 ohms, 0.1 Vrms ~ 0.707Vrms
Audio Output
Line-Out, 600 ohms, 0.707 Vrms
Audio Compression
G.711u/a
Embedded Analytics
Motion Detection (up to 16 target areas)
Pre/Post Alarm Buffer
GXV3674_HD_VF: 8MB GXV3674_FHD_VF: 3MB
Snapshots
TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
SIP/VoIP Support
Yes
Power Over Ethernet (PoE)
IEEE 802.3af, Class 0
Dimensions(D x L)
255mm (L) x 104mm (W) x 187mm (H)
Weight
1.10kg
Temperature/Humidity
Operating: -20°C ~ 50°C (-4° ~ 122°F), 10 ~ 90% RH (non-condensing)
Storage: ~30°C ~ 60°C (-22°F ~ 140°F)
Power Adapter
Output: 12VDC/1A; Input: 100 ~ 240 VAC, 50 ~ 60 Hz
Casing
IP66 Compliant Weather-proof Metal Case
Compliance
FCC Part 15, Subpart B Class B; CE EN 55022 Class B, EN 61000-3-2,
EN 61000-3-3 EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22
