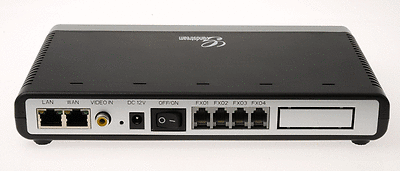

4/8 port FXO Gateways

The GXW410x FXO gateway series enables businesses of all sizes to create an easy-todeploy VoIP solution. These FXO gateways offer the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network to make deployments as easy as possible. The GXW410x series includes 4/8 FXO ports, 2 10/100 Mbps ports and supports SIP video through the H.264 codec. Advanced telephony features, easy automated provisioning and superb voice quality allow the GXW410x series to be the ideal VoIP gateway for businesses.

Features

  • Security

    Security

    SRTP security encryption technology

  • Automatic Provisioning

    Automatic Provisioning

    Provisioning options include TFTP and HTTP

  • PSTN Failover

    PSTN Failover

    PSTN Failover on power failure

  • Faxover-IP

    Faxover-IP

    Supports T.38 Fax for creating Faxover-IP

  • caller ID

    caller ID

    Supports a wide range of caller ID formats

Technical Specification

Telephone Interfaces
GXW4104: 4RJ11 FXO ports
GXW4108: 8 RJ11 FXO ports
Network Interfaces
10M/100Mbps, dual RJ45 ports
LED indicators
Power, Network and Line LEDs
Voice-over-Packet Capabilities
G.168 compiant Echo Cancelation, Dynamic Jitter Buffer, Moderm detection & auto-switch G.711
PTSN Fail-over Life Line
PTSN failover on power failure
Voice Compression
G.711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, iLBC
DHCP Client
Yes, Switched Mode or PPPoE
Fax over IP
T.38 compliant Group 3 Fax Relay up to 14.4kpbs & auto-switch to G.711 for Fax Pass-through
QoS
Diffserve, TOS, 802.1P/Q VLAN tagging
IP Transport
RTP/RTCP
DTMF Method
flexible DTMF transmission method, user interface of in-audio, RFC2833, and/or SIP info
IP Signaling
SIP (RFC 3261)
SIP Server Profiles
Up to 2 distinct SIP server profiles per system and independent SIP account per port
Provisioning
TFTP and HTTP
Media
SRTP
Management
Syslog support, HTTPS, telnet, remote mamangement using web browser
Power
Output: 12VDC Input: 100-240VAC / 50-60Hz
Environmental
Operational: 32-104°F or 0-40°C
Storage: 14-140°F or -10-60°C
Humidity: 10-90% Non-condensing
Dimensions
230mm x 135mm x 35mm
Mounting
Wall mount and desktop
Short & Long Haul
REN3: Up to 150ft on 24AWG line
Caller ID
Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID
Polarity Reversal/Wink
Yes
EMC
EN55022/EN5504 and FCC part 15 Class B
Safety
UL
