KX-UT123/113

PANASONIC KX-UT123

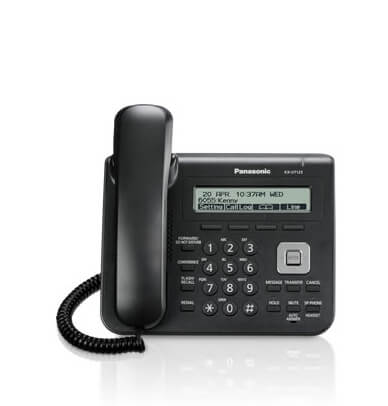

Panasonic KX-UT123 Standard Desk Phone Features


  • Certified for Asterisk and Broadsoft.
  • Easy operation
  • 3-way conference call
  • 500 Entry Phonebook
  • Plug and Play configuration
  • 2 x 10/100-BaseTX Ethernet port, PoE
  • Green (Low standby power consumption)+


Features

  • High Definition "HD" Audio

    High Definition "HD" Audio

    The KX-UT series of SIP terminals offers 'best in class' audio quality, meaning fewer repeated conversations and misheard calls. Offering Wideband High Definition Audio as standard across the range, the UT series offer G.722, G.711 , G.726 and G.729a Codecs. Coupled with Enhanced Echo Cancellation and an Expanded Acoustic Chamber, the UT series of SIP terminals offers a superior audio experience to users over handset, speakerphone and optional headsets. The entire range features wideband compliant, hearing aid compatible handsets, and built-in, high quality speaker and microphone.

  • LCD Displays

    LCD Displays

    Large, clear LCD displays with intuitive User Interface offer fast access to phonebooks and features.

  • Electric Hook Switch

    Electric Hook Switch

    A built in Electronic Hook Switch (Plantronics compliant) port allows the KX-UT133 and KX-UT136 SIP Terminals to have access to the Plantronics range of DECT enabled headsets. This offers a range of portability and comfort as frequent users are able to move around freely, without being tied down by handsets.

  • ECO Friendly

    ECO Friendly

    Low power consumption, combined with an advanced ECO standby mode means lower energy costs. Consumption can be less than 1 watt in ECO mode! (UT 1xx series)

  • Plug and Play Configuration

    Plug and Play Configuration

    The entire KX-UT range of SIP devices features support for extensive provisioning options which allow automatic, quick device configuration, using configuration files stored on a remote server, meaning a smaller administration overhead, saving time and money. The range is certified compatible with Digium Asterisk and Broadsoft Broadworks, ensuring excellent compatibility with leading soft switch suppliers.

  • Reduced cabling – One wire to the desktop

    Reduced cabling – One wire to the desktop

    Reduce the need to rewire the office when you expand your business. Many of the Panasonic SIP terminals include a second network port, allowing a second device to access the network with less cabling. This reduction extends to the power supply - all the UT series terminals support Power Over Ethernet. No more power adaptors cluttering up desks.

  • Integration with CRM applications

    Integration with CRM applications

    Connecting the Panasonic UT series terminals to a Broadsoft hosted service opens a world of CRM integration. Both incoming and outgoing calls can be handled from the desktop. By using Mondago Go Connect, access to a wide range of commonly used CRM systems can be achieved. Desktop and web based applications can now be used, offering productivity and a competitive edge.

Technical Specification

Configuration
.Plug & Play Configuration: Server based configuration, TR-069, Panasonic Redirect Server
.Manual Configuration: Internal web Configurator, Local (LCD based) network configuration
IP Features
SIP Accounts: 2
SIP Compatibility: RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic SIP PBX
IP Version: IPv4
DHCP Client
DNS:
Software Features
.Phone Book (Entries): 500 – each with 5 numbers
.Call Log Entries: 30 incoming calls + 30 outgoing calls
.Conferencing: 3 parties (within terminal – multi-party dependent on server)
Keys
.Soft Keys: Yes - 4
.Programmable Keys: 0
Audio Features
.Headset, Speaker & Headset Volume: 8 levels (includes echo cancellation and distortion prevention)
.Ringtones: 32
.Ringer Volume: 6 levels + Off
Networking
.Ethernet Ports: 2 – 10/100
.Power Over Ethernet (PoE): Yes
.Bluetooth: No
Install Options
.Desk Mount Tilt: No
.Wall Mount: KX-A432 (optional)
.Power Adaptor: KX-A239 (optional)
Other IP Features
.HTTP
.HTTPS
.SNTP Client
.VLAN (802.1q)
.QoS (DiffServ)
Other Software Features
.XML: XML application support from Q1 2012
.Music On Hold: Supplied by Host Service (PBX / SIP Server)
Other Keys
.0-9, *, # Keys: Yes
.Navigator & Cancel Keys: Yes
Other Audio Feautures
.Headset Port: 2.5 mm
.Electronic Hook Switch Control Port: None
.Audio Codec: G.711, G.722, G.726, G.729a
