KX-UT670

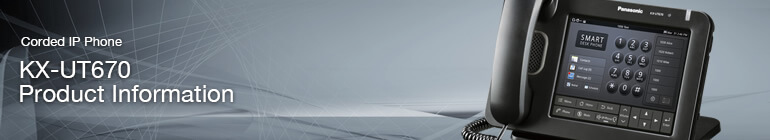

PANASONIC KX-UT670
The highly expandable smart desk phone with color LCD features a 7-inch touch-panel function.
- 6 SIP accounts
- 7 inch touch display
- HD Voice (G.722)
- 3-way conference call support
- Compatible with Asterisk, Broadsoft and CommuniGate Pro
- 2 x GbE ports, PoE
- Linux based open source operating system
- Full duplex speaker phone
- Electronic hook switch (Plantronics)
- Plug and Play configuration
- Cable concealing back
- Long handset cords
- Non-slip rubber feet
- Changeable angle stand
- Wall mounting
Features
-
call support
3-way conference call support
Technical Specification
Display
LCD Display-262,000 colors
LCD Size-7 inch touch display
LCD Backlight-15/Auto
HD Video-720p
LCD Size-7 inch touch display
LCD Backlight-15/Auto
HD Video-720p
Install Options
Desk Mount Tilt -2 positions
Wall Mount -KX-A434 (optional)
Power Adaptor -KX-A422 (optional)
Wall Mount -KX-A434 (optional)
Power Adaptor -KX-A422 (optional)
Audio Features
Handset, Speaker, Headset Volume 15 levels
Ringtones 32
Ringer Volume 7 levels + Of
Headset Port 2.5 mm
Ringtones 32
Ringer Volume 7 levels + Of
Headset Port 2.5 mm
Keys
Programmable Keys 24 (4 pages of 6 keys)*2
Software
Phone Book (Entries) Depends on memory
Call Log Entries 100 in + 100 out
Conferencing 3 parties (within terminal – multi-party dependent on server)
Call Log Entries 100 in + 100 out
Conferencing 3 parties (within terminal – multi-party dependent on server)
IP Feauters
SIP Accounts -6
SIP Compatibility RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX
IP Version -IPv4
DHCP Client
DNS
HTTP
HTTPS
SNTP Client
VLAN (802.1q)
QoS (DiffServ)
SIP Compatibility RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX
IP Version -IPv4
DHCP Client
DNS
HTTP
HTTPS
SNTP Client
VLAN (802.1q)
QoS (DiffServ)
Configuration
Plug & Play Configuration Server based configuration
Manual Configuration Internal web Configurator, Local (LCD based) network configuration
Manual Configuration Internal web Configurator, Local (LCD based) network configuration
Interface
Ethernet Ports 2
Ethernet Interface 10/100/1000 Mbps
PoE (Power over Ethernet) Yes
Bluetooth® No
USB 1 (USB 2.0 Host)
SD Card Slot SDXC Memory Card / SDHC Memory Card / SD Memory Card
Ethernet Interface 10/100/1000 Mbps
PoE (Power over Ethernet) Yes
Bluetooth® No
USB 1 (USB 2.0 Host)
SD Card Slot SDXC Memory Card / SDHC Memory Card / SD Memory Card
Power Consumption
PoE
Standby: 5.2W (Backlight OFF)
Talking: 7.0W
Max: 12.9W
AC Adaptor
Standby: 4.6W (Backlight OFF)
Talking: 6.2W
Max: 11.5 W
Standby: 5.2W (Backlight OFF)
Talking: 7.0W
Max: 12.9W
AC Adaptor
Standby: 4.6W (Backlight OFF)
Talking: 6.2W
Max: 11.5 W
Operating Environment
0 °C - 40 °C (32 °F - 104 °F)
Dimensions (Width x Depth x Height; handset on cradle, stand attached)
High position:
270 mm x 180 mm x 220 mm
Low position:
270 mm x 192 mm x 170 mm
270 mm x 180 mm x 220 mm
Low position:
270 mm x 192 mm x 170 mm
Weight (with handset, handset cord and stand)
1300 g
Other Audio Feutures
Electronic Hook Switch Control Port*1 3.5 mm
Audio Codec G.711a-law / G.711µ-law / G.722 (wideband) / G.729a
HD Voice
Speaker Phone-(Full Duplex)
Audio Codec G.711a-law / G.711µ-law / G.722 (wideband) / G.729a
HD Voice
Speaker Phone-(Full Duplex)
