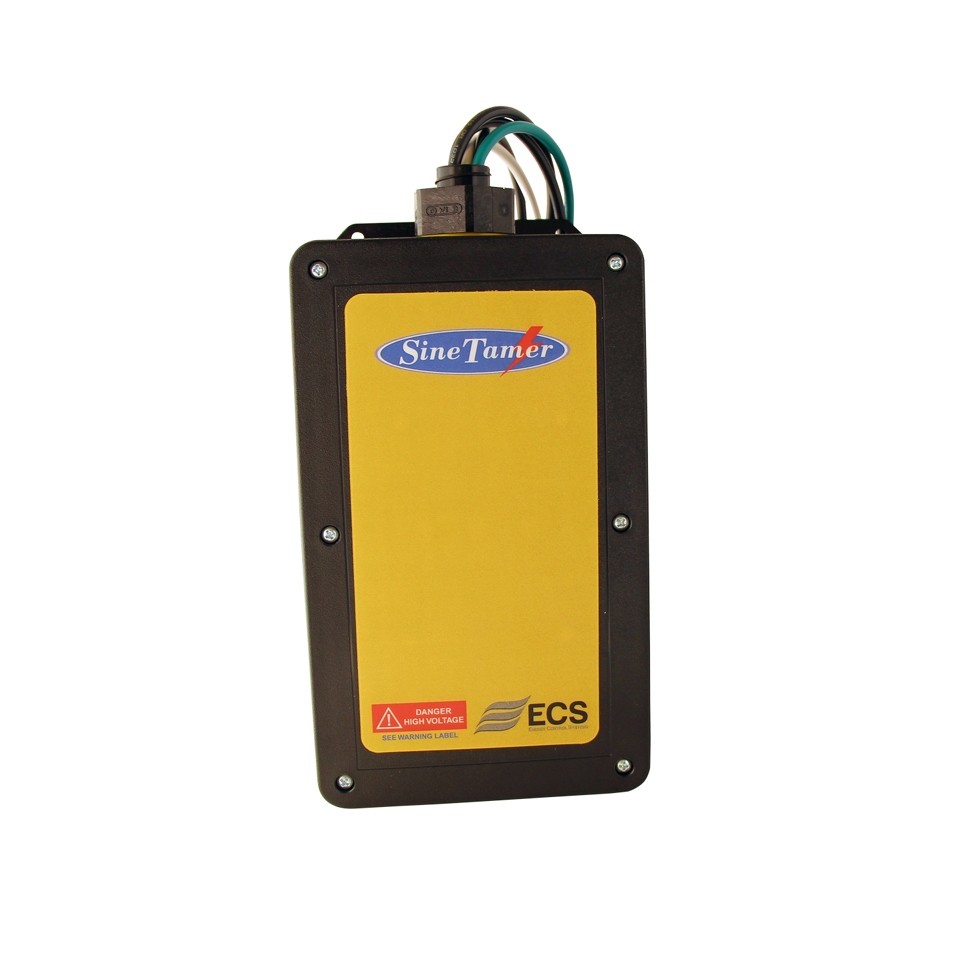

Sinetamer LA-ST180 Parallel 380V / 480V Transient Voltage Surge Supressor

The SineTamer© LA series of units blends outstanding high-energy “impulse” suppression with excellent “ringwave” transient protection. This durable device is intended for general purpose and sensitive/critical load applications. The LA-ST180 is typically installed at service entrances up to 1800 amps, distribution and sub distribution panels. Compact size and non-metallic enclosure design also allow it to be installed directly inside electrical panels and individual equipment disconnects. The internal installation provides the absolute shortest possible lead length and optimum performance. This economical device has features that are not available in devices costing many times its price. Its compact size makes installation a breeze. Maintenance Free operation and 20 Year Unlimited Free Replacement Warranty provide peace of mind. Standard unit is Type 2 10kA UL Nominal Discharge Current; Optional Type 2 20kA IN is available.

Features

  • Application

    Application

    Designed for use at ANSI/IEEE Categories C, B and A with susceptibility up to medium exposure levels. Designed to protect sensitive/critical loads fed from distribution panels, branch panels and/or individual equipment panels.

Technical Specification

Description
Designed for use at ANSI/IEEE Categories C, B and A with susceptibility up to medium exposure levels. Designed to protect sensitive/critical loads fed from distribution panels, branch panels and/or individual equipment panels.

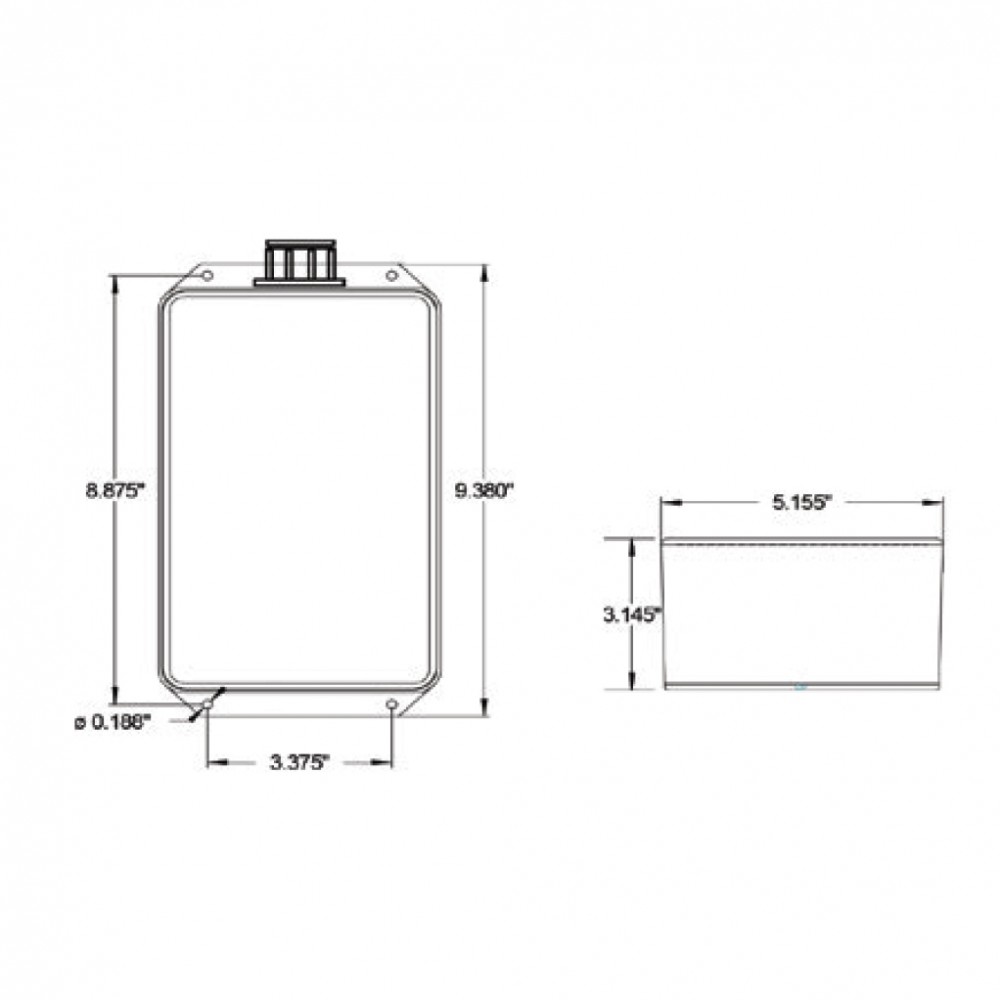

Enclosure
High strength ABS Plastic, Nema 4 rated
Mounting
2.54 cm conduit fitting (internally threaded) and external mounting feet.
Connection Method
#10 stranded wire // 2.60 mm dia.
Circuit Design...
Parallel connected, internal thermal fusing, hybrid design incorporating discrete all mode
protection (10 modes for 3 phase wye units*) and utilizing our encapsulated design to
provide improved durability.
...Circuit Design
All suppression circuits are encapsulated in our exclusive
compound to assure long component life and complete protection from the environment
and/or vibration.
Protection Modes
Dedicated protection components and circuitry for each mode. Discrete L-N, L-L (Normal Mode), and Discrete L-G, N-G (Common Mode). 10 modes / 3 phase wye system.
Input Power Frequency
50-60Hz
Options
LA-STB = Type 2 20kA IN Type 1 available – contact factory for proper model number.
Circuit Diagnostics
Super Bright LED, 1 per phase, normally on. Dry relay contacts for remote monitoring.
Circuit Interrupt
External and internal (see installation instructions for details).
Fusing
Line level and component level thermal cutouts (see installation sheet for full details)
