NC6500

Compact Two Pocket Value Counter

COMPACT, YET POWERFUL

It is a cost-effective and low noise equipment specially designed for tellers.

Not only authenticate, but also process fitness sorting of counted banknotes. Capable of cheque scanning with the image processing technology. The all-in-one design makes all tedious operations in a snap.

Perfect for tellers when it comes to banknotes fitness handling.

Features

  • Great Quality

    Great Quality

    Designed compact and elegant for human technology.

  • User Friendly

    User Friendly

    Non-stop continuous operation with error codes. Use Software (End User Tool) to save and track each transaction by date, customers’ name, and serial number.

  • Connectivity

    Connectivity

    Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes. Software upgrade could be done by PC, SD card, LAN.

  • Efficient

    Efficient

    Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle.

  • Fitness

    Fitness

    Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.

  • Compact Design

    Compact Design

    Compact in size and avant-garde in appearance, smallest fitness sorter in the category.

  • Accurate

    Accurate

    Counterfeit detection: MR, MG, CIS, UV, IR reflection and transmission, tape sensor.

  • Multi Currency

    Multi Currency

    Capable of recognizing multi-currency based on character of each banknote.

  • Dual User

    Dual User

    Two tellers share one machine with individual setting preferences

  • Easy Maintenance

    Easy Maintenance

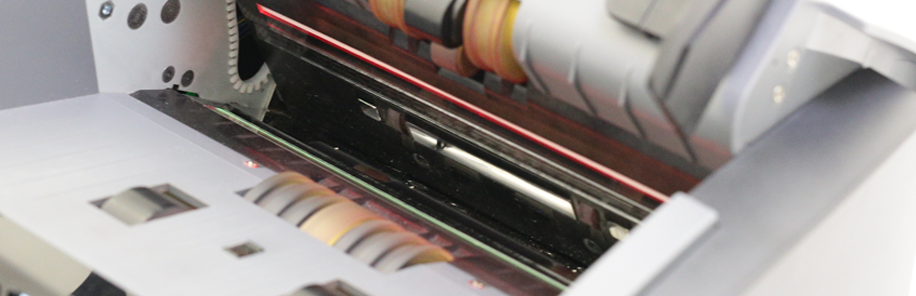

    Opening from top and rear bill path facilitates routine maintaining work.

Technical Specification

Hopper Capacity
Max. 500 notes
Feeding System
Roller Friction System
Stacker Capacity
Max. 200 notes
Reject Capacity
Up to 100 notes
Available Currencies
USD, EUR, GBP, LOCAL (OPTION), Up to 10.
Countable Note Size
60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
Display
3.5 Inch TFT LCD
Power Supply
100 ~ 240V AC, 50/60Hz
Power Consumption
Max. 50W
Dimensions (mm)
280 (W) x 272 (D) x 282 (H)
Weight
8.2 kg
Interface
LAN x1 RS-232 X 2 USB X 1 SD CARD X 1
Options
Remote Display
Thermal Printer
Counting Speed
1100 Note/Min.(Piece Count)
900 Note/Min.(Denomination Count)
700 Note/Min.(Serial Number Count)
700 Note/Min.(Fitness Count)
Counterfeit Detection
Dual CIS, Infrared reflection and transmission, Magnetic, Tape Sensor, Ultraviolet.
