NC7100

Two Pocket Fitness Sorter

EXCELLENCE THAT EXCEEDS YOUR EXPECTATION

NC7100 heavy duty 2-pocket fitness sorter designed to achieve growing demand for efficient cash management in back office processes.

Mechanical design with reliable sensor set provide cutting edge solution for back office processing that allow increase in efficiency and cost reduction.

Features

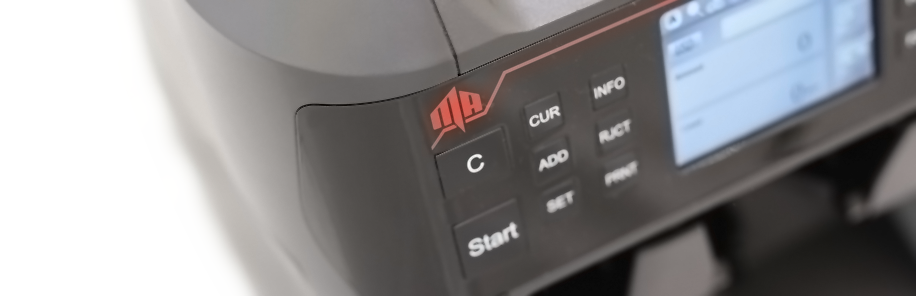

  • Color LCD Display

    Color LCD Display

    Color TFT LCD and full graphic user interface.

  • Connectivity

    Connectivity

    Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes. Software upgrade could be done by PC, SD card, LAN.

  • Efficient

    Efficient

    Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle.

  • Fitness

    Fitness

    Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.

  • User Friendly

    User Friendly

    Non-stop continuous operation with error codes. More than 7 ways of processing modes make easy and simple operation.

  • Durable and Reliable

    Durable and Reliable

    Designed and produced in Taiwan, renowned for effective and long-lasting products

  • Easy Maintenance

    Easy Maintenance

    Easy jam removing, you can clear note path with easy access even without standing.

  • Accurate

    Accurate

    Counterfeit detection: MR, MG, CIS, UV, IR reflection and transmission, thickness sensor

  • MultiCurrency

    MultiCurrency

    Capable of recognizing multicurrency based on character of each banknote.

  • Dual User

    Dual User

    Two tellers share one machine with individual setting preferences

Technical Specification

Available Currencies
USD, EUR, GBP, LOCAL (OPTION), Up to 10.
Feeding System
Roller friction system
Denomination Detection
Contact Image Sensor.
Hopper Capacity
500 notes (circulated notes)
Pocket Capacity
Main Pocket Capacity 250 notes (circulated notes)
Reject Pocket Capacity Max. 100 notes (circulated notes)
Countable Note Size
60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
Display
3.5 Inch color TFT
Power Supply
100 ~ 240V AC, 50/60Hz
Power Consumption
Max. 150W
Dimensions (mm)
330(W) x 330 (D) x 350 (H)mm
Weight
Approx. 18 kg

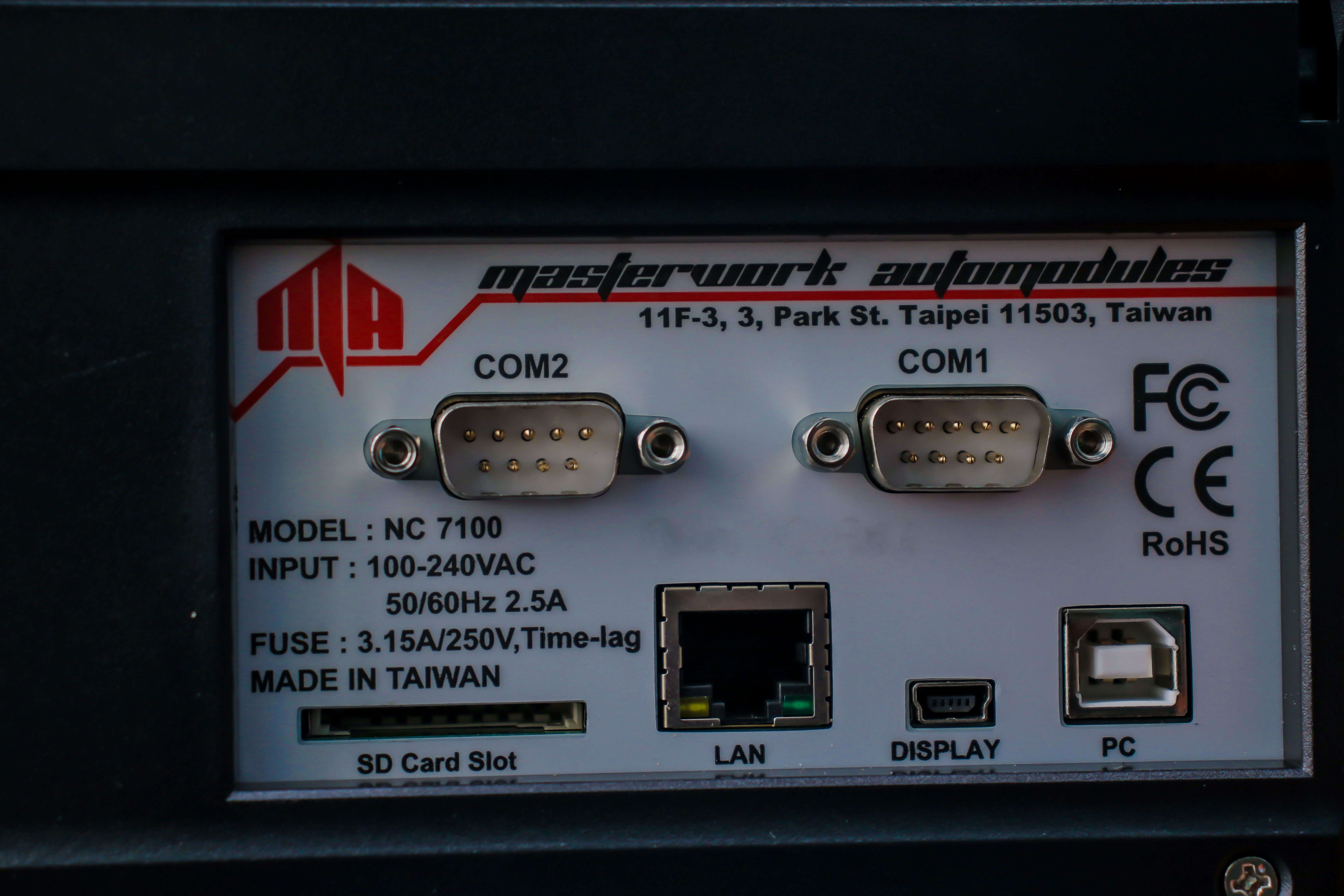

Interface
LAN x1 RS-232 X 2 USB X 1 SD CARD X 1
Options
Remote Display
Thermal Printer
Counting Speed
1300 Note/Min.(Piece Count)
1100 Note/Min.(Denomination Count)
1100 Note/Min.(Serial Number Count)
1100 Note/Min.(Fitness Count)
Counterfeit Detection
Dual CIS, Infrared reflection and transmission, Magnetic, Thickness Sensor, Ultraviolet.
