NC9500

Multi-Pocket Fitness Sorter

RESTLESSLY IN SEARCH OF GREATER PERFORMANCE

NC9500, another revolutionary product and cutting edge model from MA, is so far the most powerful fitness sorter in the MA portfolio, featuring expandable modular stacker design on top of enhanced and reliable authentication & fitness-sorting ability.

NC9500 stops counterfeits by using the most advanced counterfeit detection technology in the industry. With the expandable stacker design, user is able to process banknotes in the shortest time.

Easy modes switching to fulfill all kind of cash handling process, it reduces workload with high speed and accuracy. Supporting most of the currencies worldwide, and various possibilities for connectivity, satisfying the demand for large banknote handling environment.

Features

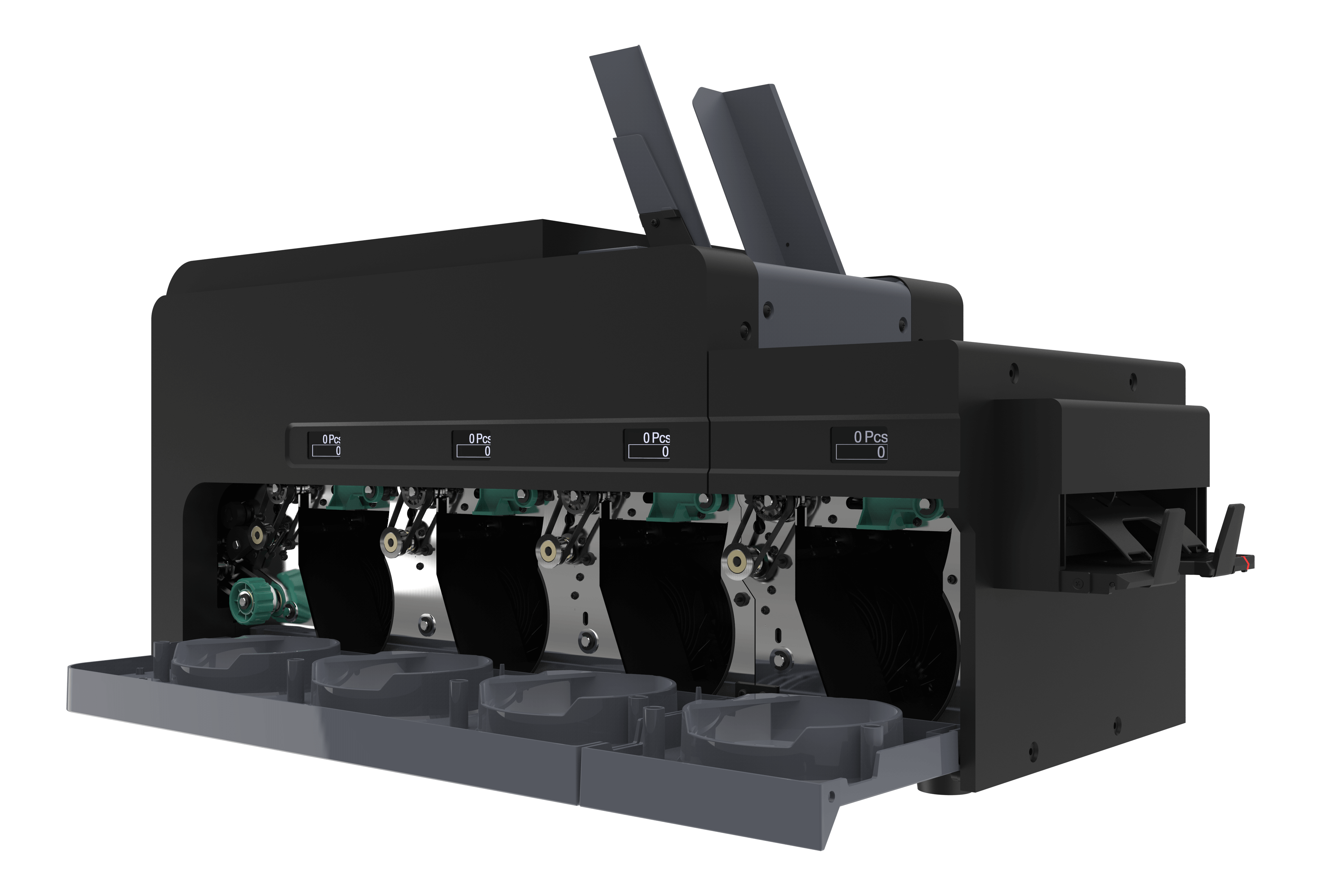

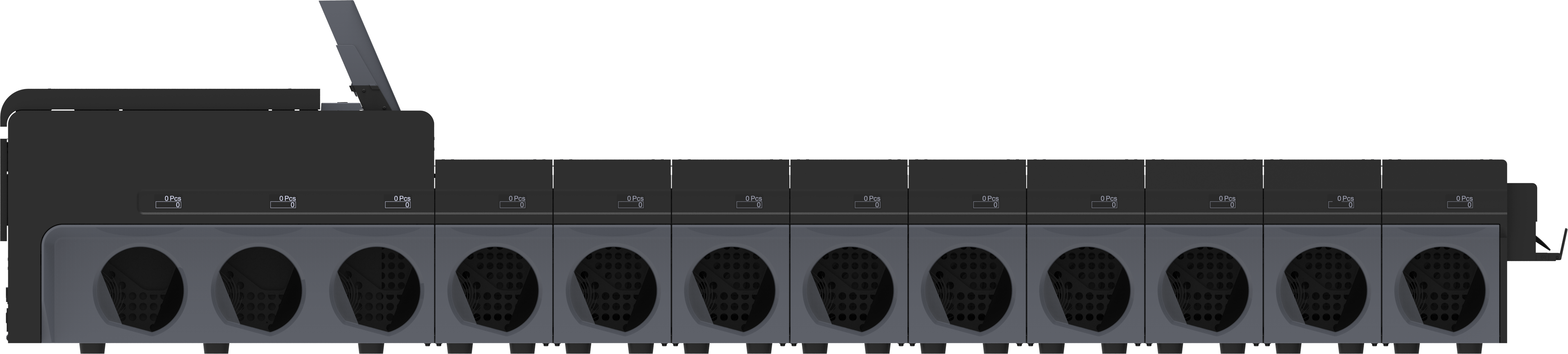

  • Expandable Up to 12 Stackers & 1 Reject

    Expandable Up to 12 Stackers & 1 Reject

    Expandable Up to 12 Stackers & 1 Reject

  • Individual Stacker Configuration

    Individual Stacker Configuration

    Individual Stacker Configuration

  • Built-in Dust Cleaning System

    Built-in Dust Cleaning System

    Built-in Dust Cleaning System

  • Efficient

    Efficient

    Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle

  • Multi Currency

    Multi Currency

    Capable of recognizing multi currency based on character of each banknote.

  • Fitness

    Fitness

    Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.

  • Durable and Reliable

    Durable and Reliable

    Designed for heavy duty usage and long lasting.

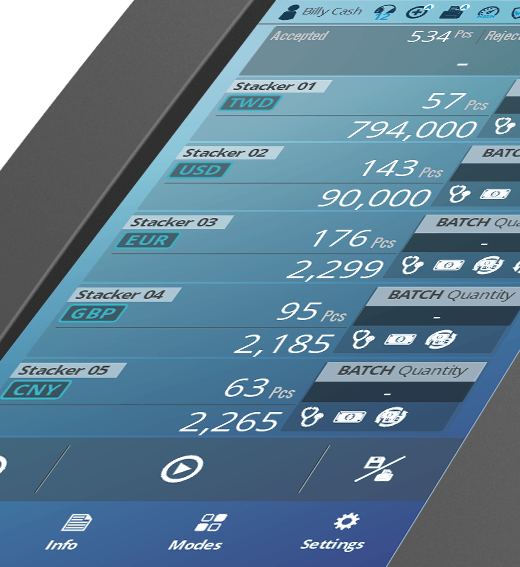

  • Touch Panel Display

    Touch Panel Display

    Touch Panel Display

  • Multi User

    Multi User

    Multi User

  • Connectivity

    Connectivity

    Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes. Software upgrade could be done by PC, SD card, LAN

Technical Specification

Feeding System
Friction Roller System
Counting Modes
Count, Mix, Sort, Face, Orientation, Fitness, Issue, TITO (Optional)
Counterfeit Detection
MA Technology Detection Module
Capacity
1000 Banknotes (Hopper)
200 Banknotes (Per Stacker)
100 Banknotes (Reject Pocket)
Counting Speed
800 notes per minute
Available Currencies
USD, EUR, GBP, LOCAL (Multi Currencies Optional)
Countable Note Size
60 x 85 x 0.08mm ~ 100 x 190 x 0.12mm
Display
7” Touch Screen
Interface
LAN, RS232, USB, External Display
Power Supply
AC100V ~ 240V, 50/60Hz
Consumption
Max. 200W
Dimension
Approx. 700 x 350 x 370 mm (Main Unit)
Approx. 180 x 350 x 270 mm (Extra Stacker)
Net Weight
Approx. 50Kg (Main Unit)
Approx. 7Kg (Extra Stacker)
